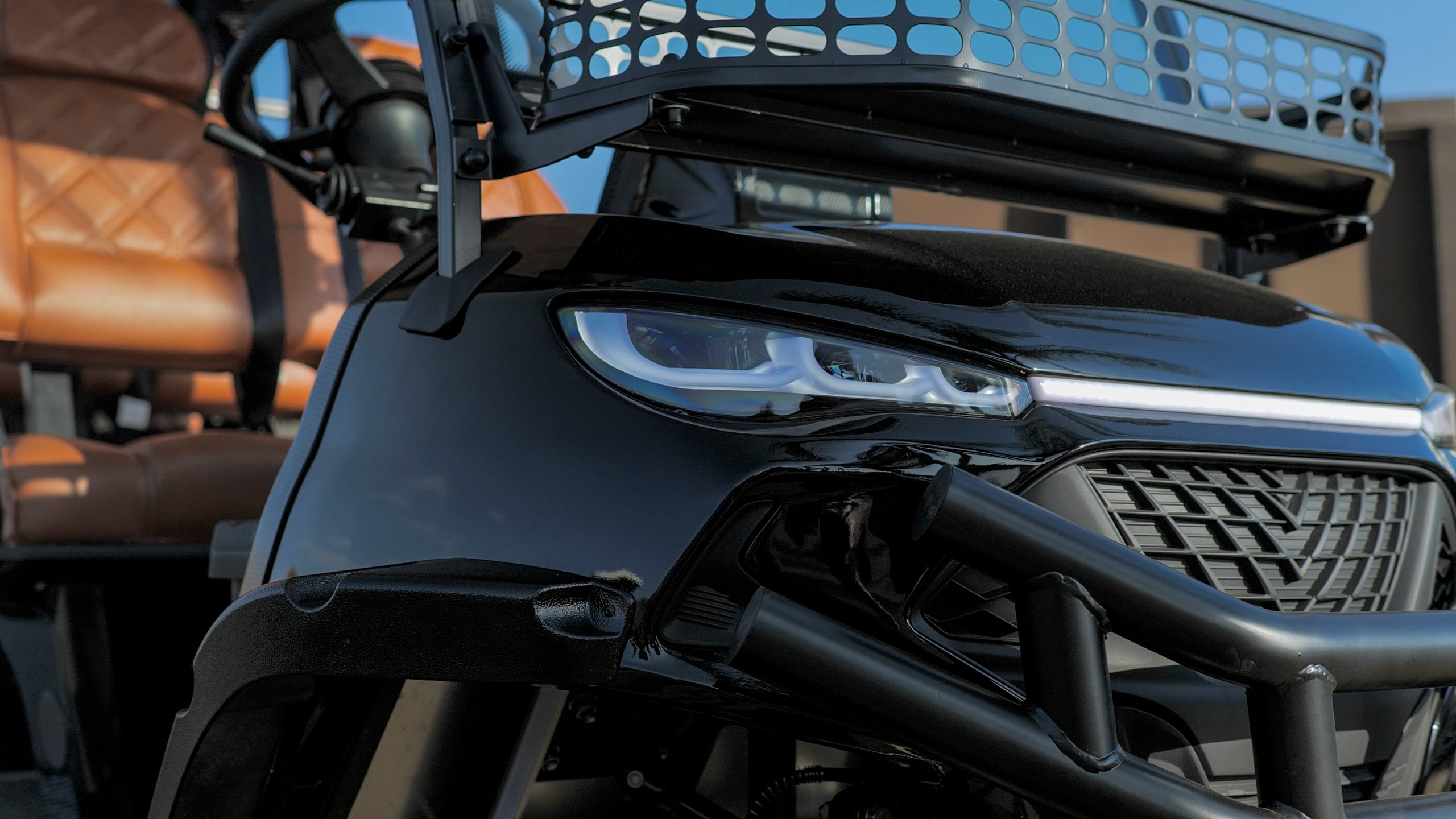

The electric golf cart is an environmentally friendly passenger vehicle specially

developed for golf courses and community cruises by our company. Excellent vehicle

performance, novel appearance design, luxurious and exquisite interior, comfortable

and safe driving, it is the ideal domestic electric vehicle.

Dash Overview

Pedal Overview

Power supply lock - Main switch of electrical system power supply. Insert the keyinto the electric lock, rotate it clockwise, and power on the light, horn and other accessories as well as the control system; Turn off the power when returning.

Accelerator pedal - To control the speed of the vehicle. It should be stepped on slowly, and the speed will be accelerated with the increase of the stepping distance; Step on the bottom, the vehicle runs at full speed; The pedal is lifted and the vehicle speed is slowed down; Fully raised. The electric braking function is realized.

Brake pedal - To decelerate or stop the vehicle.

Electronic Parking - For the parking brake.

Steering wheel - Controls the direction of the vehicle.

Multimedia - Combine speed display, power display, video playback, audio playback function.

Double Flash Switch - Warning effect in the case of burst.

Forward and Backward Switch - The rocker switch has three positions, and press the upper part of the switch to move forward; Press the lower part of the switch to move backward.

USB - Type/C USB

* Be sure to press the switch in place, otherwise the rear axle and motor will be damaged.

1) Turn on the electric lock switch;

2) Press the forward and backward rocker switch, lock it in the forward or backward state, and check whether it is in place;

3) Release the parking brake;

4) Press the accelerator pedal at a constant speed, and the vehicle starts to start.

* If the forward/reverse gear is engaged first and then the electric lock is turned on, the vehicle will not be able to run. At this time, the neutral gear must be engaged first, and then the forward or reverse gear must be engaged again before the vehicle can run.

The driver must fully understand the technical performance, control mechanism and operation rules of the vehicle, and abide by the following safety operation rules

* This vehicle is an off-highway vehicle, please do not drive on the highway!

* Do not drive with overload, so as to avoid potential safety hazards such as reduced braking performance.

* Unqualified personnel are not allowed to drive this vehicle.

* Drive within the approved grade range.

The battery provides the total power source for the whole vehicle, just like the heart of the electric vehicle, so it is very important.

1) The surface, connecting wires and bolts of the battery shall be kept clean and dry for a long time. In the process of cleaning, water is forbidden to enter the battery, so as to avoid leakage and increase self-discharge, resulting in vehicle operation failure.

2) The battery must be well connected. Frequently check whether the connecting end face of the battery connection is rusty and whether the fastening nut is loose, so as to avoid heating, sparking and burning out of the pole due to poor contact.

Note: The other end of the wrench used to tighten the nut shall be wrapped with adhesive tape to prevent short circuit caused by improper operation.

3) Do not place anything on the battery. Do not connect the positive and negative poles of the battery directly to avoid short circuit and damage to the battery.

4) After the battery is discharged, it must be charged in time to achieve shallow charge and discharge.

Note: In summer, after the vehicle is running, the battery temperature is high, so it is not suitable to charge immediately, and you should wait for a while. Allow the battery to cool before charging. Do not charge in the sun. In winter, the temperature is very low. When the battery is in a low temperature state, its charging and discharging performance will be reduced, and charging should be carried out indoors.

5) Use the special charger equipped for the vehicle to charge the battery. Using another charger may damage the battery.

6) During driving, the driver should observe the indication of voltmeter/electricity meter on the dashboard at any time. When it drops to the red area, it indicates that the battery power has been exhausted, and the vehicle must be stopped and charged in time.

7) If the vehicle is not used for a long time, the battery should be fully charged and stored, and the battery should be replenished every half month.

8) Ensure the air circulation in the charging place, and keep away from the open fire.

1) The vehicle is equipped with on-board charger as standard.

2) Connect the 220V/110V input power supply and check whether the model of the input line matches the input current to avoid overload of the input line.

3) Connect the output plug to the vehicle.

4) After the input and output lines are connected, the red light of the indicator light flashes, and the charger performs self-check. After the self-check is completed, the green light of the indicator light flashes to start charging.

5) In the charging process, when the battery power is less than 80%, the green light flashes slowly, and when the battery power is more than 80%, the green light flashes quickly. When the battery reaches 100%, the red light is always on. When the battery is fully charged, it will stop automatically.

6) In the process of charging, if the grid voltage is too high or too low, that is, the voltage range is beyond 90-260 V, the charger will automatically carry out protection, and the fault light will be on to prompt the user. When the voltage returns to normal, the charger will automatically resume charging.

Important Notice!

* During the charging process, hydrogen will be released from the battery, so it is necessary to keep the charging place ventilated and avoid open fire and fire. Sparks.

* It is forbidden to use the charger after accidental water ingress. The charger shall be used in an environment with a temperature of -10 ℃ ~ + 45 ℃.

* When the charger breaks down, do not disassemble it by yourself. Please contact our after-sales service department.

1) The motor of the vehicle can work normally within the nominal working voltage range of the battery pack.

2) The motor shall not be allowed to idle, and the terminals shall not be short-circuited externally.

3) The air shall not contain explosive gas.

4) Remove the silt and other things stick on the motor shell frequently, so as not to affect the heat dissipation.

5) Check the carbon brush of the DC system motor once every three months, and timely replace the seriously worn carbon brush and the invalid carbon brush pressure spring. The AC system motor is maintenance-free.

Common faults and causes of DC motor chart

Note: The adjustment and replacement of the motor carbon brush and the repair of the motor commutator need to be operated by professionals.

Common faults and causes of AC motor chart

The electronic control devices used in this vehicle are all imported products with original packaging, and the high-frequency MOS technology is used to achieve smooth, quiet, efficient and energy-saving vehicle speed, torque and braking control.

● This prevents runaway during startup. When the vehicle is started, if the controller detects that the shifter is not in the neutral position, it will trigger the controller protection function (HPD) controller to disable the output.

● Power-on self-test of the microprocessor with continuous diagnostics during operation. If a fault occurs, control

● The device immediately stops output, thus providing comprehensive protection for the operator and the vehicle.

● The AC controller also has temperature monitoring and protection functions, which can effectively prevent the motor temperature from being too high and avoid damage to the motor.

1) Regular maintenance

- a. Check whether the contacts of the contactor are in good contact, whether there is adhesion or open circuit, and whether there is sundries or ablation between the contacts; Check whether the moving contact is mechanically stuck.

- b. Check whether the on-off performance of the microswitch in the accelerator is good.

- c. Check whether the on-off performance of the direction switch is good. (Continuously variable transmission vehicle).

- d. Check whether the connection between the motor, battery pack and controller unit is in good condition. Note: The inspection shall be carried out under the condition of power failure.

- e. Check and keep the electric control, motor and battery pack clean. The above inspection shall be carried out at least once every three months. After the power supply is turned off, the filter capacitor in the controller unit should be kept discharged for several minutes. Do not wash the electrical components with water! Dust can be removed with a clean brush or high-pressure gas.

2) Fault characteristics and possible causes: View Chart Here

1) Depress the brake pedal with a force of approx. 30 kg f. The pedal travel does not exceed 2/3 of the total travel.

2) The brake pad clearance is automatically adjusted. Under the pulling force of about 20 kg f, the parking handle shall be able to be clamped on a tooth between 5-10 ratchet teeth, and the wheel shall be able to be effectively locked. When the handle is fully released and returns to its original position, the parking brake is released.

3) Regularly check and replace the brake shoe, and add lubricating oil to the brake hub bearing.

1) The brake fluid used in the factory is Lake 901 automobile brake fluid, and it is forbidden to mix different brands of brake fluid.

2) The gearbox and rear axle use 85 W/90 GL hyperbolic gear oil, and the filling amount is 0.8 liters.

3) Main lubrication points: add grease to the steering gear, tie rod, steering knuckle and bearing parts.

To ensure the service performance of the vehicle, improve the reliability of the whole vehicle and prolong the service life of the whole vehicle, the running-in of its components shall be carried out before the vehicle works at the maximum load. It is specified that the running-in period of a new vehicle is one month or 1000 kilometers, which shall be carried out according to the following specifications:

1) Before the running-in of a new vehicle, the oil, electrolyte and brake fluid must be carefully checked. If the oil, electrolyte and brake fluid are insufficient, they should be filled according to the regulations. Tyres shall conform to 205/50-10 with a pressure of 200 to 250 kPa.

2) Try not to drive on the loop surface.

3) Frequently check the fastening condition of the connecting parts, and fasten them if they are loose.

4) During the running-in period of the new vehicle, the vehicle speed shall be controlled within 15km/H.

* Caution:

1) Before driving, the parking brake must be put to the end to avoid burning the brake pad.

2) Check the rear power assembly every three months and fill or replace the grease.

3) Check the wear condition of the brake shoe once every three months, and adjust and replace it in time if there is any problem.

4) Check the fastening of the electrical system once a month, especially the large current path, such as the connection between the battery, motor and electric control, which should be kept in good condition. At the same time, the contact state of the contact shall be checked, the defects found shall be corrected in time, and the dust deposited shall be removed in time.

5) Due to the poor contact of electrical contacts, they will be heated, so we should always pay attention to the heating state of the contact points.

6) When replacing the fuse, be sure to check whether the rated current of the new fuse is correct.

7) During the maintenance and repair of the vehicle, in order to ensure safety, the positive and negative power supply wires of the battery pack should be removed.

8) It is strictly prohibited to step on the accelerator or jog the accelerator frequently to avoid damaging the accelerator and shortening the service life of the electronic control.

9) Do not add other liquids, such as battery additives, mineral water, tap water, etc. Into the battery. Distilled water must be added.

10) Drive safely. It is forbidden to drive at high speed when going downhill. When turning, the vehicle should slow down. When turning and going downhill, the passengers should be reminded to pull the handrail to avoid safety accidents.

11) Children are strictly forbidden to play in the car. Children should sit in the middle of the car and be guarded by adults to avoid children falling into the car.

12) Please carry out regular maintenance according to the following table: View Chart Here

13) Fuse location: The plug-in type accessory fuse (AC system has 3 fuses) is

installed in the fuse box, and the fuse box is on the right side of the seat bucket.

1) Warranty Definition It refers to the failure or parts damage (loss of use function) caused by non-human (use or improper operation and maintenance) within the specified use conditions and time limit. The company will repair or replace the corresponding parts for the user free of charge to ensure the normal operation of the vehicle. Please understand that the parts replaced under warranty will not be returned to the user.

2) Warranty Period. The whole vehicle is guaranteed for one year (except wearing parts).

3) Warranty conditions

● All parts must be original parts of the company and within the warranty period.

● Warranty is not granted in the following cases:

- a. Damage caused by the user's failure to use according to the instructions or improper storage.

- b. Damage to parts and components caused by disassembly and maintenance by the user.

- c. Damage, theft or loss of parts caused by natural disasters and accidents.

- d. Vulnerable parts are not covered by the warranty, such as bulbs, insurance, brake pads, glass products, connectors, etc.

4) Determination of warranty period, The valid user warranty card and the copy of the purchase invoice shall be taken as the evidence. If the above documents cannot be provided, the company will calculate the date based on the factory number of the product.

Electrical Schematic Diagram

This manual may not be reproduced, translated or excerpted without the written consent of the Company This manual is based on the existing data as far as possible, and the text, pictures and parameters are comprehensive and detailed; However, the actual configuration and function of the user's vehicle shall be subject to the specific delivery. The company will continue to make changes to various models, and may change at any time, so the company has the right to make changes and supplements to the relevant version of this manual. If the user has any doubt about this, please call the customer service hotline in time for consultation.

* Copyright Infringement will be prosecuted.
